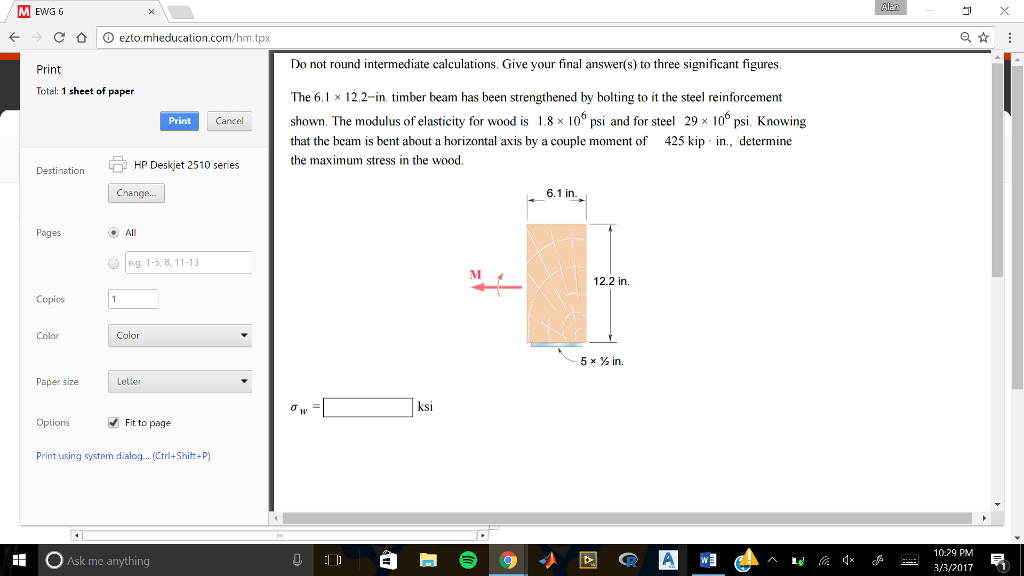

Solved The 6.4 times 12.8in. timber beam has been
On 25/06/2021 at 15:22, nod said: I normally bolt a timber inside the bean. Then nail joist hangers to the timber. I would use 18 mil bolts 600 apart. Mark out where your joists are going to make sure the hangers don't clash. You can lift the hangers or even add a timber wall plate to the top. 1.
Joining Timbers David Cosby Chartered Surveyors & Estate Agents
You can have the beam predrilled for the bolts you need in order to pack the beam out with wood, but keep in mind that the engineer needs to know exactly how the beam will be loaded. This will likely make a difference in the beam's dimensions or the gauge of the steel.
Как усилить уголок от прогиба металлический навес 86 фото
Screws and nails are an integral part of every project, whether you're securing wood, drywall, concrete, steel or other materials. No matter what you're building — indoors or outdoors — Simpson Strong-Tie ® fastener products help you design and build safer, stronger structures. Our fastener line includes a variety of nail types and.
What type of wood is used for support beams Think landlord
a bolt design example utilizing the American Wood Council's (AWC) 2015 National Design Specification® (NDS®) for Wood Construction. Topics include connection design philosophies and behavior, an overview of 2015 NDS provisions related to bolt design including local stresses in fastener groups, and a detailed design example.
Steel Corner Post Base With Attachment Wings Timber Frame HQ Timber frame construction
Typically I show the top of the timber joist about 1/4" or more above the top of the steel beam so that when the timber shrinks and dries, you don't end up with a hump in the floor along the length of the steel beam (don't know if this applies to you).. so no worries with hangers. Recommend stitch bolting the infill to the web though. Mike.
Attaching Floor Joist To Steel Beam Floor Roma
Hertfordshire. Country. 12 May 2022. #4. No, put all the load onto the steel - the steel beam will be far stronger than the timber so you are better off using that for all the load. Obviously depends on the size of the steel and timber members but a correctly designed steel will carry the weight of the roof and the wall above no problem.
Roof frame composite timbersteel Ibeam and rafters Roof framing, Beams, Woodworking
Hi Morgan, You can find recommended fastening information for 2x wood to steel in Section 3.2.2.4 of Hilti's Direct Fastening Technical Guide. The X-U 47 (1 7/8") is recommended for this application. You can find all available lengths for the X-U here. The X-CF and X-CP are only for use into concrete, so these fasteners would not be suitable for wood to steel connections.
Closeup Detail of New Wooden Beams Fastened with Bolts. Stock Photo Image of metal
STEEL BEAM CONNECTIONS WITH HANGERS. As illustrated here, steel beams with wood filler require top mount or face mount hangers to attach to the TRIFORCE ® open joist. The use of top mount hangers can be done in certain conditions. As per those examples below, you can use a wood sill plate fix to the steel beam and fix the hangers to that sill.
将木材锚固到钢铁IBeam Fine HomeBuildin万博充值记录g 狗万滚球注册
K here goes, there's many different methods to fastening to the steel. Heres just a few. Keep in mind you may be comfortable with one of these but what happ.
Bolted connection of steel beams. Massive metal construction Stock Photo Alamy
Step 4. Place the wooden plank on top of the I-beam flange. Turn in 1/4-inch by 1 1/2-inch lag bolts with a ratchet and socket until they are firm. This now gives you a solid base to mount such things as floor joist hangers, plywood or other wood stock that can be directly screwed into the top mounted plank. When you want to attach wood to a.

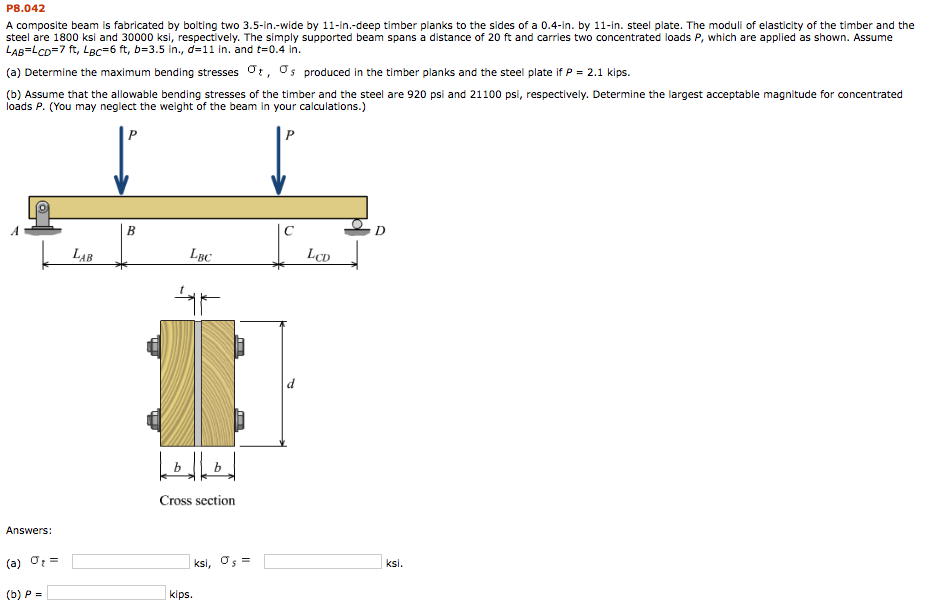

Solved P8.042 A composite beam is fabricated by bolting two
For example, you can fasten wood to the steel I beam using bolts. When using a bolt, you have to penetrate the flange, which is time-consuming and stressful because you have to drill it in. You have to drill into both ends of the steel I beam so the bolt can go through before using the nuts and washers.
Bolting Timber To Steel Beam Master The Art! Diy Collab
Choose lag bolt size. Drill holes through the steel beam. Attach the wood board to the top of the steel beam. Hang top-mount hangers on the wood. Affix rafters/floor joists to hangers. Read the rest of this post for detailed direction for each of the above steps.
TSC beam with fasteners and dowel connection (unit mm). Download Scientific Diagram
To bolt timber to a steel beam, drill holes in the timber and beam, put bolts in the holes, and tighten them. Bolting timber to a steel beam creates a solid connection between the two materials, making it a popular construction technique. Bolting timber to a steel beam is a common technique used in construction projects.
Solved The 6.1 times 12.2in. timber beam has been
A steel to timber connection is a connection built up by multiple layers of steel plates and timber elements like beams, panels, etc. The forces are transferred to each layer by fasteners like nails, bolts, screws which are mostly subjected to lateral forces. The following picture is showing the connection we are designing in this tutorial.

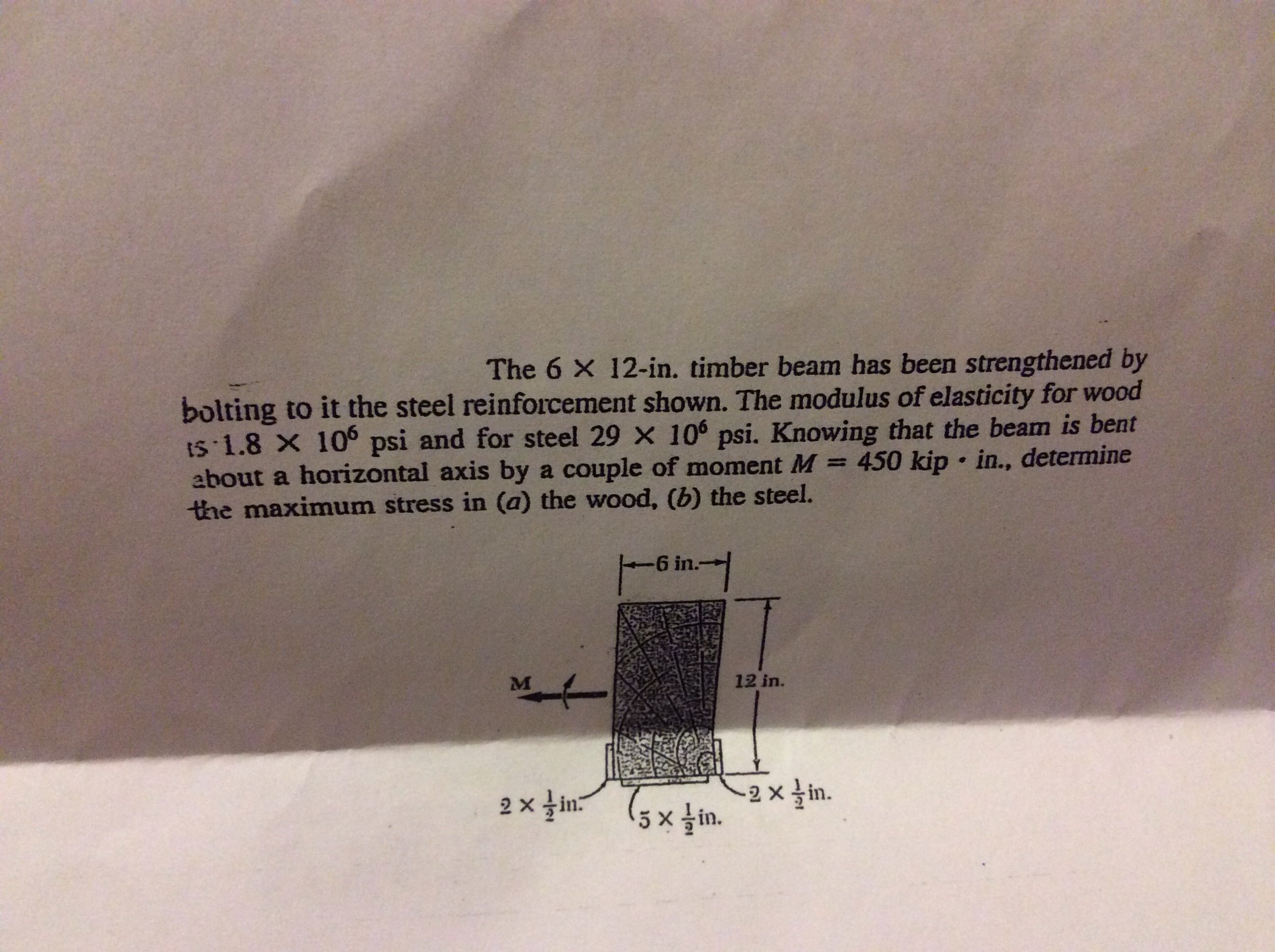

Solved The 6 x 12 in. Timber beam has been strengthened by
Sheeting & Cladding. When fastening timber into steel, you must use a countersunk head self-drilling fastener that has been designed for this application. Some timber-to-steel self-drilling fasteners feature special wings, which will make a wider hole in the timber than in the metal. When the self-drilling fastener reaches the metal substrate.
SHS Beam Column Simple Fin Connection Detail Steel beams, Concrete column, Beams
I think the best method is to bolt 2x lumber to the top flange of the I-beam, then nail top-mount joist hangers to the lumber. I use 1⁄4-in. by 1 1⁄2-in. lag bolts through the bottom of the top flange. Because top-mount joist hangers won't resist twisting as well as face-mount hangers, I use strapping below or blocking between the joists.
.
